storage rack roll forming machine

storage rack roll forming machine
storage rack roll forming machine
Product Code : HKY
Product Description

storage rack roll forming machine

1.Manual Un-coiler

a. Width of raw material: 600mm

b. Max Capacity: 3000kgs

c. Max out diameter of coil: 1500mm

d. Inner diameter of coil: 400-600mm

e. Manual with brake

2.Leveling device

a. Ensure the material level and straight

b. The width can be adjusted.

3.Main Forming System

a. Width: 50/100/125 ( Adjustable by spacer)

b. Height: According to your request

c. Thickness of sheet: 0.2-1.2mm

d. Material: GI sheet coil or cold rolled coil or S.S

e. Roller stations: 10 rows

f. Material of Rollerï¼Å¡Cr12

g. Surface of Roller: Heat treatment HRC58-60

h. Diameter of main shaft: 60mm  #45 steel, heat treat modulation

i. Power of main motor: 5.5kw

j. Forming Speed: 0-50m/minute

k. Transmission: by gear

l. Safety Hood: Cage

m.Middle plate: 30mm thickness

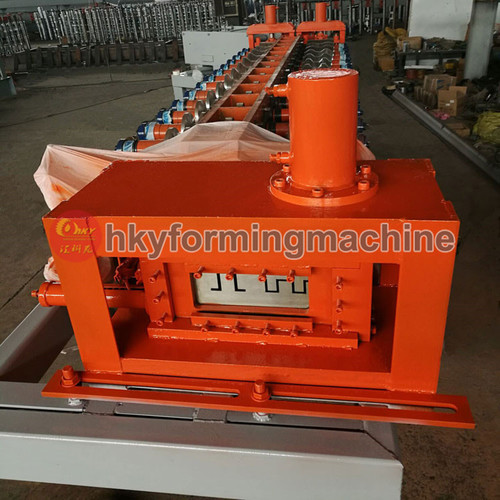

4.Cutting device

a. Oil pump station  1set

b. Motor power of Oil pump station: 4kw with cooling system

c. Forced air cooling device available

d. Cutting mould: 1set

e. Material of blade: CR12 with heat treatment HRC60-62

f. Cutting way: Tracking (flying)

5.Run-out Table

a. Frame: 8# steel groove welded

b. Length: 4mx1m

c. Quantity: 1 pc

6.Electrical System

a. PLC and HMI touch Screen (Taiwan Delta or Siemens)

b. Automatic length measurement

c. Automatic quantity measurement

d. Length measurement: Rotary Encoder

e. Over current protection for control system, aviation plugs

f.  Power: 380V 50Hz  (as per local requirement)

About us

We are special in roll forming machine for nearly 20 years, with high quality and competitive price in China.

Our company covers an area of 30,000 square meters, including separated workshop for glazed roll forming machine, sandwich panel roll forming machine, C/Z purlin roll forming machine and Plastic coated workshop etc. the showcase workshop with our products open  also is waiting for your coming.

our products are popular in Russia, India, UK, USA, Kazakhstan, Tajikstan ,Malaysia, Nigeria, Rumania and Albania etc. more than 50 countries and region with acclaim.



More details

Certificates: BV, CE, SGS

Trade Terms: FOB

Loading of Port: XINGANG PORT, CHINA

Min. Order Qty: 1 Set/Sets

Delivery Time: 1-10 Sets, in 30 working days ; Over 11 Sets, in 40 working days

Payment Term: T/T, 30% deposit in advance, 70% before shipment

Warranty: 2 Years

During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but  normal wear and tear excepted. And the freight should be bore equally by both parties.

We will provide the technical support for the whole life of the equipment.



After-sales service:

1.We provide the technical support for whole life of our machines.

2.If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,including visa,roundtripticket etc.
