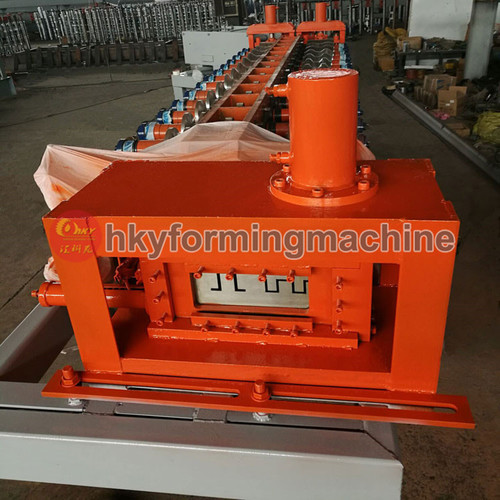

Shelf Post Roll Forming Machine

Shelf Post Roll Forming Machine
Shelf Post Roll Forming Machine
Product Code : HKY
Product Description
Shelf Post Roll Forming Machine

1. Manual Un-coiler

a. Max Capacity: 5000kgs

b. Inner diameter of coil: 400-600mm

c. Manual with brake

c. Manual with brake

2. Leveling device

a. Ensure the material level and straight

b. The width can be adjusted.

3. Punching Device and cutting Device

a. Punching way: pre punching ( this is our unique technology, side holes are available)

b. Cutting way: Pre cutting, pause to cut

c. Blade Material: Cr12

4. Main Forming System

a. Thickness of raw material: 0.3-3.0mm G.I sheet coil

b. Available size: C80-C300 (adjustable trough spacer)

c. Power: 11kw Motor

d. Hydraulic power: 4kw hydraulic pump station

e. Measuring accuracy: +/- 1 mm/M.

f. Control system: HMI & PLC

g. Producing speed: 0-15 M/min.

h. Roller material: C45 steel, chrome coated and heat treat

i. Transmission: chain and gear

j. Diameter of shaft: 80mm

k. Sprocket: P-50.8

l. Roller stations: 14rows

5. Run-out Table

a. Frame: 8# steel groove welded

b. Length: roller type. Length 4000mm

c. Quantity: 1 pc

6. Electrical System

a. PLC and HMI touch Screen (Taiwan Delta or Siemens)

b. Automatic length measurement

c. Automatic quantity measurement

d. Length measurement: Rotary Encoder

e. Over current protection for control system, aviation plugs

f. Power: 380V 60Hz (as per local requirement)

We can design and manufacture the machine according to the customers' requirement.  You can send me the product drawing like the aboved colored steel (which you want to produce).
