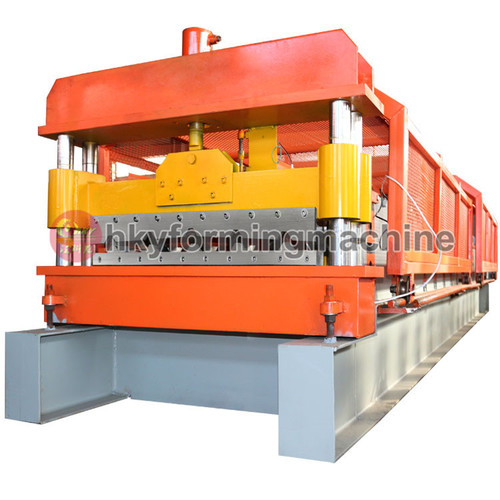

Colour Steel Sheet Roll Forming Machine

Colour Steel Sheet Roll Forming Machine
Colour Steel Sheet Roll Forming Machine
Product Code : HKY1100
Brand Name : BOTOU HUIKEYUAN ENGINEERING CONTROL CO., LTD.
Product Description

Parameter for reference

DescriptionSpecification
Main moter power5.5KW
Hydraulic station power4KW
Hydraulic oil pumpCB-E310
SprocketP-25.4
Roller station14
Yield strength32MPa
Diameter of principal axis95MM
Material of roller45#steel hard chrome plating
Processing speed8m/min
Thickness0.3-1mm
Installation dimension about(L*W*H)7.5*1.5*1.2M
Total weight3.8T
Equipment parts includes:forming machine,hydraulic cutter,hydraulic station,electric controlling system,counter,product supporter



 Material of main equipment of Roll Forming Machine

1 Roller material: high grade No.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm

2 Active shaft material: high grade No.45 carbon wrought steel at diameter 75mm

3 Cutter blade: Cr12 mould steel with quenched treatment

4 Eletric elements: control systerm with PLC model S7-200,Siemens transducer with ABB control panel with TP 170, Siemens it can input 10 sets of spec at one time

5 Oil tank model of hydraulic systerm: CB-E310



Usage:

Color steel roll forming machine is widely used in producing color steel sheet for buildings.



About us

We are special in roll forming machine for nearly 20 years, with high quality and competitive price in China.

Our company covers an area of 30,000 square meters, including separated workshop for glazed roll forming machine, sandwich panel roll forming machine, C/Z purlin roll forming machine and Plastic coated workshop etc. the showcase workshop with our products open  also is waiting for your coming.

our products are popular in Russia, India, UK, USA, Kazakhstan, Tajikstan ,Malaysia, Nigeria, Rumania and Albania etc. more than 50 countries and region with acclaim.



More details

Certificates: BV, CE, SGS

Trade Terms: FOB

Loading of Port: XINGANG PORT, CHINA

Min. Order Qty: 1 Set/Sets

Delivery Time: 1-10 Sets, in 30 working days ; Over 11 Sets, in 40 working days

Payment Term: T/T, 30% deposit in advance, 70% before shipment

Warranty: 2 Years

During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but  normal wear and tear excepted. And the freight should be bore equally by both parties.

We will provide the technical support for the whole life of the equipment.



After-sales service:

1.We provide the technical support for whole life of our machines.

2.If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,including visa,roundtripticket etc. ania etc, more than 50 countries and regions.
